Interactive Whiteboard |
| The Promethean ActivBoard is designed by teachers, for teachers to transform the classroom into a truly interactive learning environment. The ActivBoard 100 comes with an ActivPen (Teacher) that writes like a pen with the added functionality of a mouse, access to ActivInspire Personal Edition and is available in two sizes. Optional upgrades are available for wireless connectivity to the computer and Dual-User functionality. |
General Specifications |
Internal Resolution |
2730 points (lines) per inch |
Output Resolution |
200 points (lines) per inch |
Tracking Rate |
200 inches per second providing a fast
response to pen commands |
Output Rate |
120 coordinate pairs per second
Cordless battery-free pen incorporating
tip switch and side switch for full mouse
functionality (ActivPen) |
User Input |
ActivPen (Teacher): 167mm x 20mm x 23mm
(6.57in x .79in x .91in)
Pen weight: 25g (0.9oz)
Optional ActivWand 50 for extended reach |
Digitizing Technology |
Passive electromagnetic interface encased
behind robust melamine for technical reliability
and durability |
Screen Surface |
Low glare melamine providing an efficient
projection surface |
Screen Format |
4:3 |
Certifications |
UL, CE, FCC |
Operating Temperature |
0°C - 50°C (14°F - 122°F) |
Storage Temperature |
-20°C - 70°C (-4°F - 158°F);
Humidity (non condensing) 0% - 90% |
Power Requirement |
USB powered device |
Dual-User Functionality |
Optional ActivArena 50 upgrade pack
Requires ActivInspire Professional Edition |
Mounting Options |
Wall mounting brackets are included; can be
included with ActivBoard+2 Fixed system |
| |
|
|
Activboard Specifications |
Model |
ActivBoard 164 |
ActivBoard 178 |
ActivBoard Size |
64in |
78in |
Resolution |
10000 x 8000 |
12800 x 9200 |
Overall Dimensions |
1426mm x 1166mm (56.2in x 45.9in) |
1768mm x 1329mm (69.6in x 52.3in) |
Active Area Dimensions |
1271mm x 1012mm (50in x 40in) |
1614mm x 1175mm (64in x 46in) |
Active Area Diagonal |
1617mm (63.6in) |
1988mm (78.3in) |
Actual Image Diagonal (4:3) |
1590mm (62.6in) |
1959mm (77.1in) |
Board Weight |
16kg (35lb) |
22kg (49lb) |
Packed Weight |
26kg (57lb) |
37kg (82lb) |
Packed Dimensions |
1563mm x 1282mm x 120mm
(61.5in x 50.5in x 4.7in) |
2000mm x 1480mm x 120mm
(78.7in x 58.3in x 4.7in) |
Packed Contents List |
ActivBoard 164, 1 ActivPen (Teacher),
5m
(16ft) USB cable, wall mounting brackets,
Installation Guide (includes safety guidelines)
Access to ActivInspire Personal Edition* via
download from Promethean Planet
(DVD optional and by special order) |
ActivBoard 178, 1 ActivPen (Teacher),
5m
(16ft) USB cable, wall mounting brackets,
Installation Guide (includes safety guidelines)
Access to ActivInspire Personal Edition* via
download from Promethean Planet
(DVD optional and by special order) |
|
Recommended computer requirements |
Operating Systems |
Windows Vista, XP; MAC OS 10.4.11 and above, Linux Ubuntu 8.04 |
Installation |
Operation of the ActivBoard 100 requires installation of the driver included with the ActivInspire
Personal Edition software. Specifications and access for ActivInspire Personal Edition* are located
on Promethean Planet at www.prometheanplanet.com/ActivInspire. User with administrator/
privileged access rights required to install driver and software |
|
Upgrade and accessory options |
ActivArena 50 Upgrade Pack |
Allows 2 users to work on the ActivBoard simultaneously (includes 2 Teacher and 2 Student
ActivPens, ActivArena Resources CD, ActivArena paper license, and ActivArena Quick Start Guide) |
Wireless Upgrade Pack 100/300 |
Allows the ActivBoard 100 to connect to the computer wirelessly; includes an ActivHub (2.4
GHz), PSU (power supply unit) and Quick Start Guide |
ActivWand 50 |
Wireless, battery free and extended reach input device for the ActivBoard – 540mm (21.2in) in
length; “left click”, cursor and hover, just like a mouse |
|
Standard warranty and support |
ActivBoard 100 Range |
Three Year** (Return-To-Base)
Knowledgebase: www.prometheankb.com |
ActivPen |
One Year |
|
Technical drawing specifications |

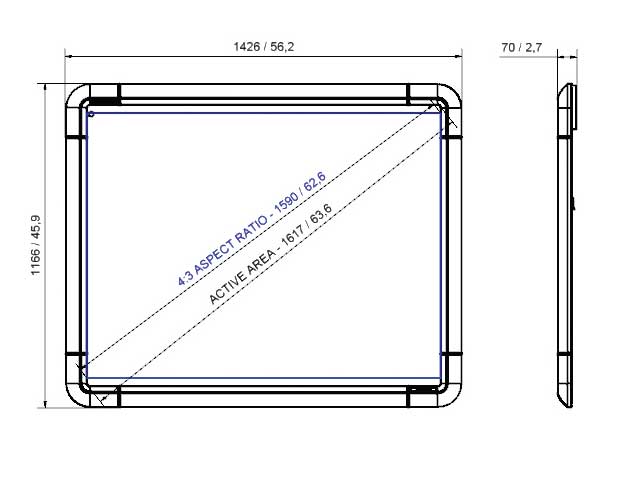

ActivBoard 164 |
 |
| |

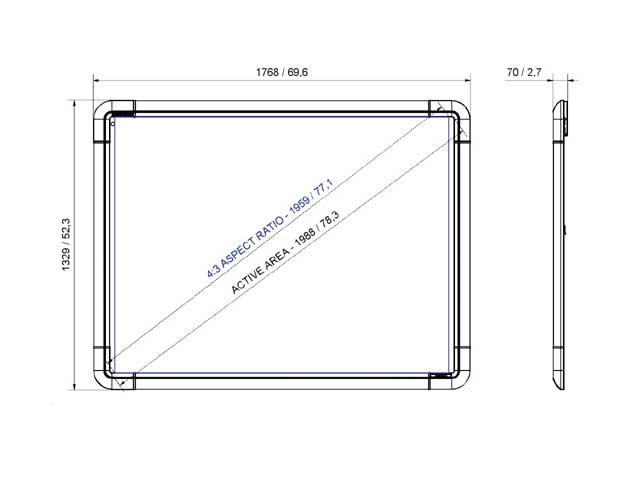

ActivBoard 178 |
 |
| |
